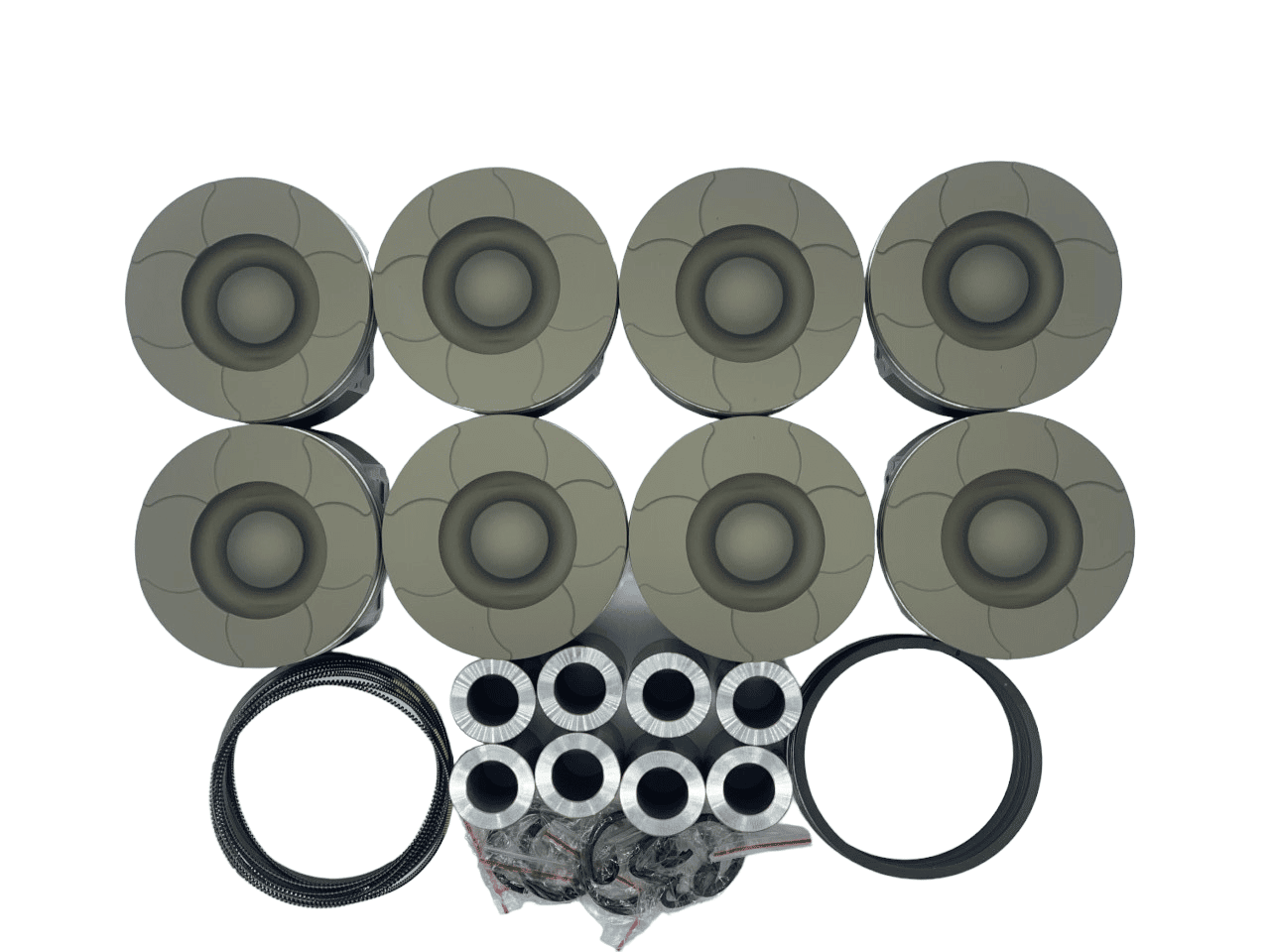

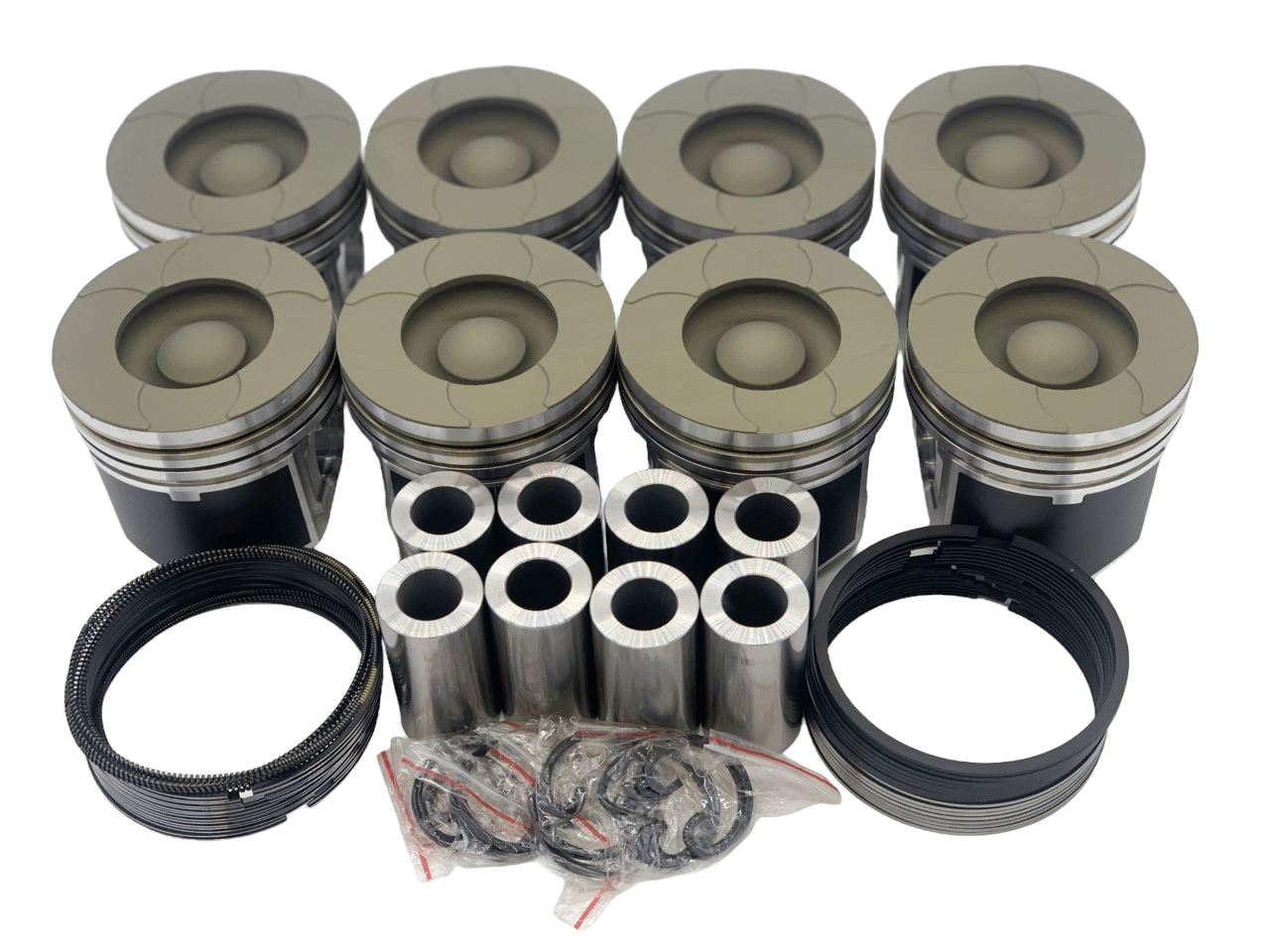

Description 6.0L Powerstroke Diesel Mahle Piston Kit Fly Cut – Ceramic Coated Sizes: STD, .010, .020, .030, .040 Piston Features Cerakote thermal management coating, far superior to traditional ceramic coatings Steel top ring groove, ideal for street-strip trucks and long-term durability Grafal moly-based friction coating on piston skirts reduces wear Plasma-coated steel top ring, ductile iron second ring, and 2-piece oil ring for excellent sealing Coated piston tops help reduce engine heat Lowers Exhaust Gas Temperatures (EGTs) and oil temperatures Increases horsepower and improves fuel mileage Pistons undergo a rigorous 4-stage in-house coating process Kit Includes 8 pistons with coated tops and Teflon-coated skirts 8 precision piston pins 16 locks Mahle piston rings included Additional Options Fly cut valve pockets for larger lift camshafts Reduced compression pistons for cylinder blocks milled more than .006″ Fly cut valve reliefs None Stage 1 & 2 Camshafts. (.035-.050 pockets needed for extra extra clearance only) Fly cut valve reliefs .050 – .075 for most manufactures stage 3 Camshafts. Fly cut valve reliefs .110 for all Stage 4 & up racing camshafts. De lip fuel bowl as an option for Hot street and race applications (will fuel smoke on cold starts) 250CC Injectors Wide race fuel bowl for all out racing (Injectors over 350cc) Delip fuel bowl option available for hot street and race applications (note: may cause fuel smoke on cold starts) Tested and rated for up to 1400 HP Important Ordering Information (Piston Agreement) Please have your engine block cylinders professionally measured at a machine shop before ordering to ensure you select the correct piston size. Changing piston size after your order has been processed and shipped will incur restocking and shipping fees. Pistons with ceramic coatings and/or that have been machined cannot be exchanged.
